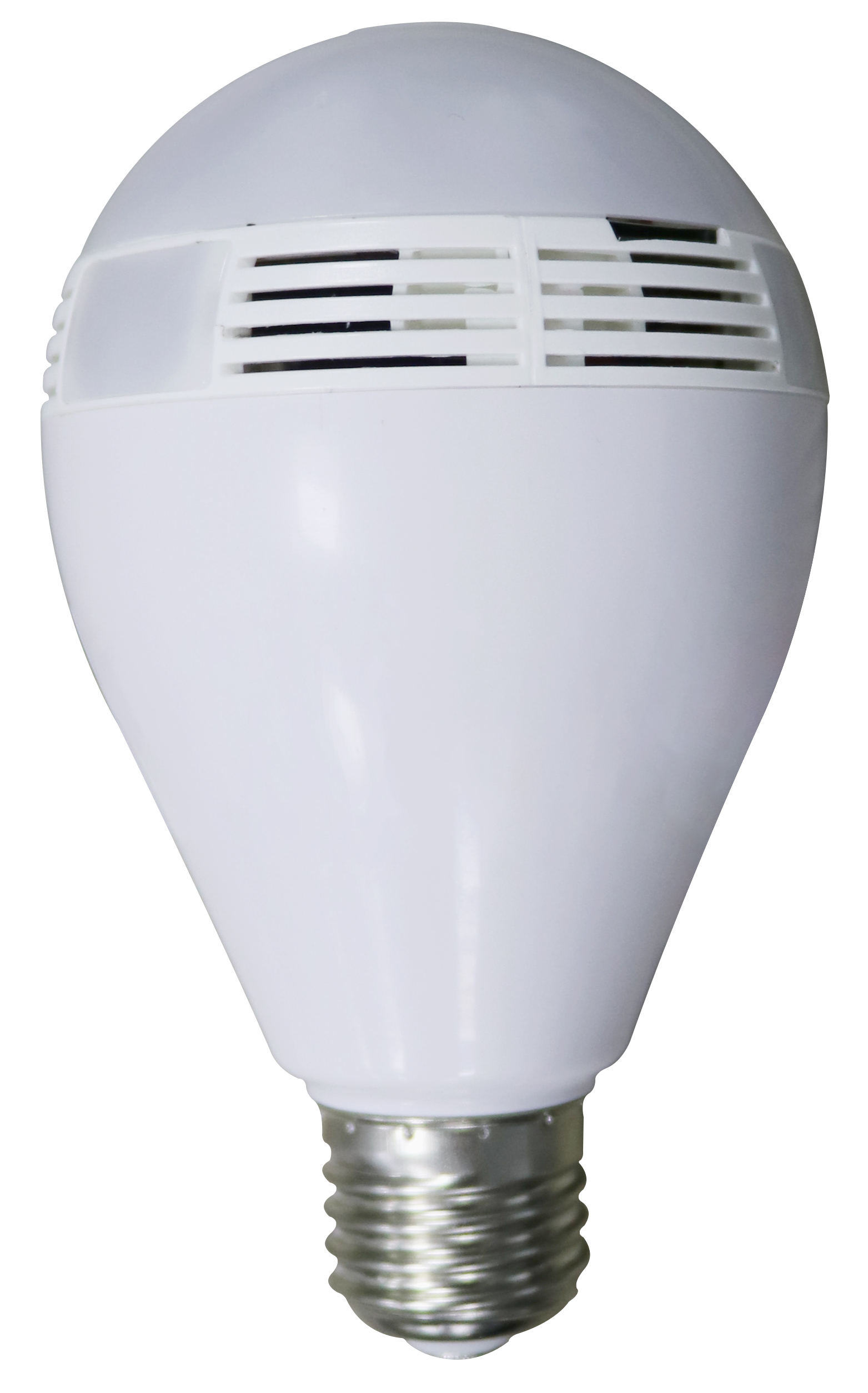

Model:CBLED-G3608
Embedded Processor:AK3901: SiP 512Mb DDR,ARM®CPU core - 32-bit RISC, up to 600MHz
sensor:IMX235

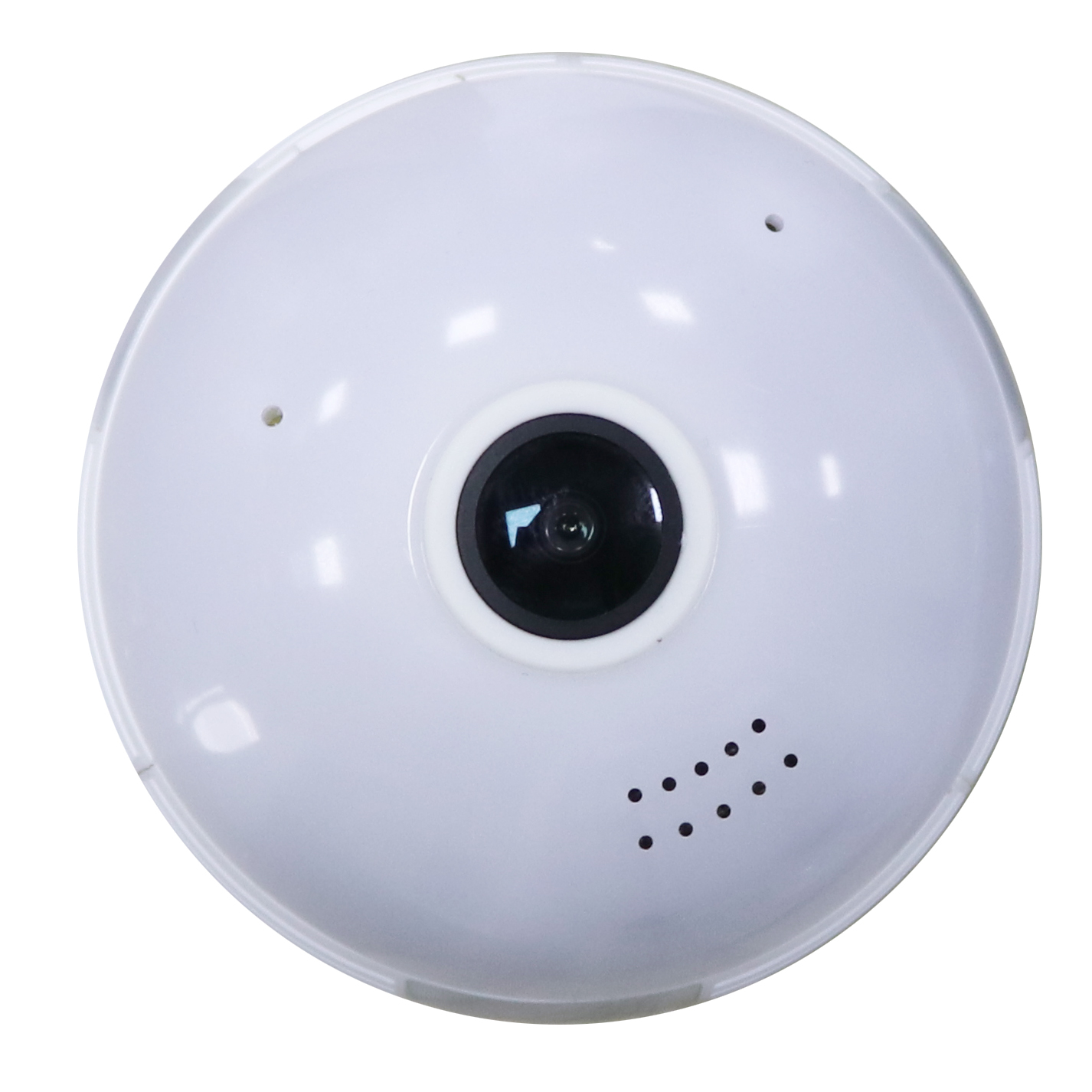

Lens:1/2.5 Fisheye lens,f=1.44mm
View angle:360°
Image pixels:1080PH
Minimum illumination:4500mV/Lux-s 0.01Lux@F2.0,black/white 0.001Lux@F2.0
Day and night:IR-cut double filter automatic switching
Video coding:H.264,dual stream
Video frame rate:25frame/second
Image resolution:Max 1080×1080
network interface:No
Wireless standard:IEEE802.11b/g/n
Frequency range:2.4GHz~2.4835 GHz
ONVIF:Support ONVIF 2.0
Power port:E27 basis
Storage port:1pcs TF(Micro SD)storage port,max 64G
Reset port:Mater reset
Power supply and consumption:AC110V-240V
Working condition:-10℃~+50℃@humidity 10%~ 95% no condensation
APP Function:
APP function(English)
Support IOS/Android;
Support the use of mobile phones to view real-time video, real-time recording, and playback video;
Support local screen shots by mobile app;
Support push alarm information screen shot ;
Support two way voice intercom;
Support cloud storage;
IP address can be set through the phone;
Support multiple display modes(traditional mode, mixed mode, corridor three-dimensional picture scroll mode, panoramic inversion mode )
